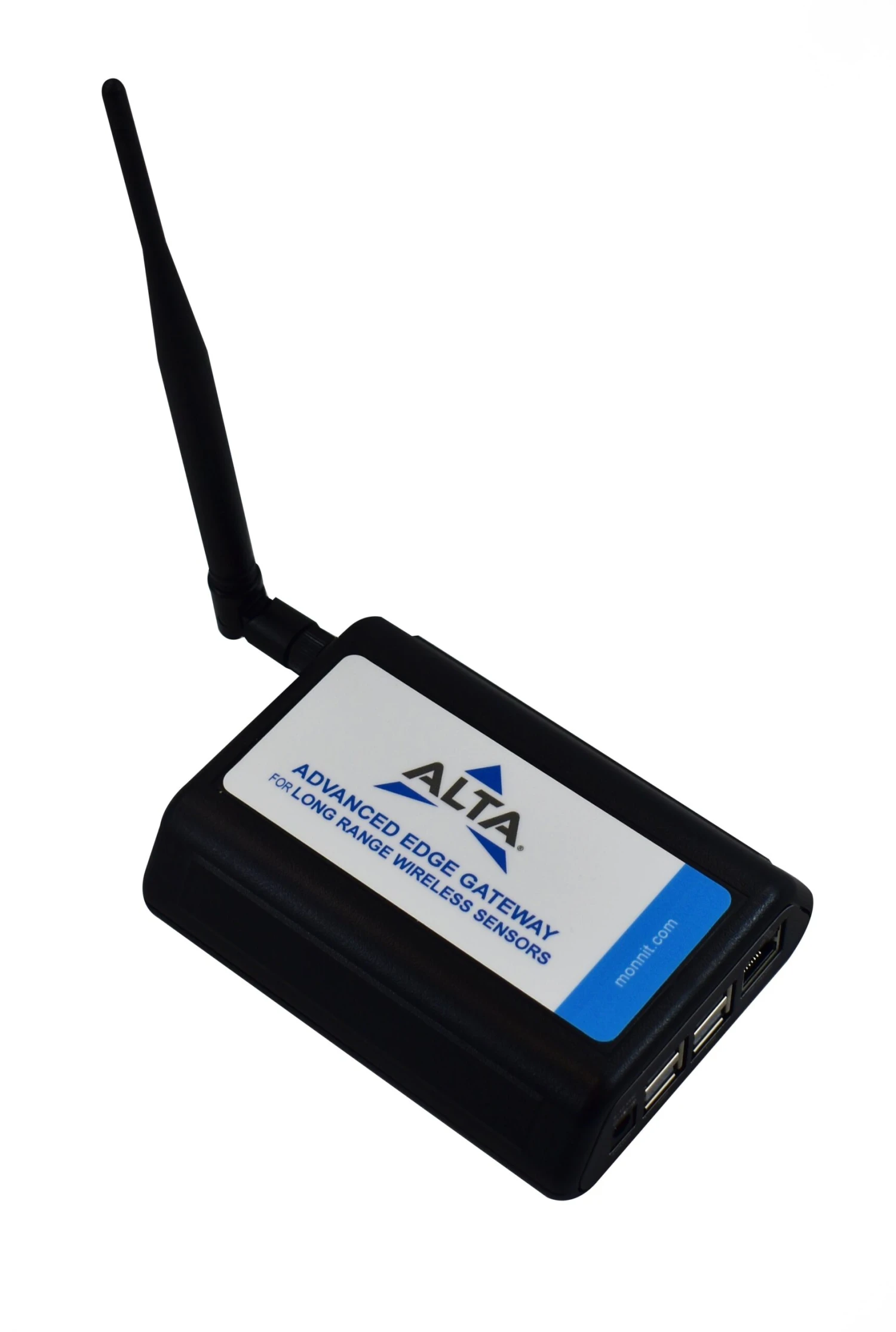

ALTA Advanced Edge Gateway W/ MQTTS

Monnit’s Edge Gateways allow your Monnit Wireless Sensors to communicate directly to your chosen MQTT broker. Local configuration management of your wireless sensor network and MQTT broker configurations make it simple to gather data directly to your data store. A perfect solution for commercial locations where there is an active internet connection.

Monnit MNG2-9-EDG-CCE Features

1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)

Advanced Edge Gateway Specifications

Hardware: CPU: Cortex-A53RAM: 1 GB LPDDR2 SDRAMDisk: 16 GBOperating System: LinuxInput Power: 5.0 VDC @ 2.5 ALED Lights: Connectivity, Power, Cloud Services, Network StatusDimension: 5.004 x 3.8 x 1.51 in.Weight: 7 ouncesOperating Temperature: 0 to 50°C (32° to 122°F)Maximum Rated Input Voltage: 5.5 VDCAntenna Type: Connector: RPSMAGain: 3.0 dBi

ALTA Commercial Gateway Specifications

Dimension: 5.004 x 3.8 x 1.51 in.Enclosure Material: ABSLED Lights: Internet Connectivity Status, Server Status, Sensor Network StatusStorage Temperature:: -20 to +60°C (-4 to 140°F)Operating Temperature: +5 to +45°C (41 to 113°F)

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
