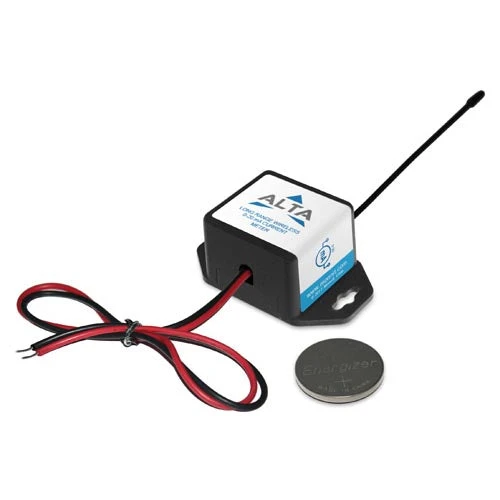

ALTA Wireless 0-20 MA Current Meter – Coin Cell Powered, 900MHZ

Monnit wireless 0-20mA current meters are capable of measuring the current off another device or sensor, up to 20mA (DC), by connecting the leads of the sensor to the positive and ground terminals of the device being measured. Examples of interfacing devices include, but are not limited to: Current transducers (CTs) with outputs up to 20 mA, pH sensor, dissolved oxygen sensor, pressure sensor, magnetic flow meters, velocity or acceleration sensors, industrial vibration sensors, industrial accelerometers, any kind of sensor that specifies the output is in (mA) within the range of 0 – 20.

Monnit MNS2-9-W1-MA-020 Features

1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)

0-20 mA Current Meter Specifications

Resolution: ~ 0.01 mA (11-bit single ended)Accuracy: Uncalibrated: 0.7mA, 0.35mA typicalCaibrated: 0.05mAConversion Time: 228 µsFull Scale Voltage: 0 – 20 mA

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)Weight: 4.5 oz. (128 g)

ALTA Coin Cell Specifications

Battery Type: Replaceable 3.0V (CR2032) Coin Cell BatteryDimension: 2.0 in x 1.125 in x 0.875 inMax Operating Temperature: -7°C to +60°C ( 20°F to +140°F )Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )Supply Voltage: 2.0 – 3.8 VDCBattery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. **Enclosure Technology: Monnit PinchPower™ Wireless Sensor EnclosuresEnclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
