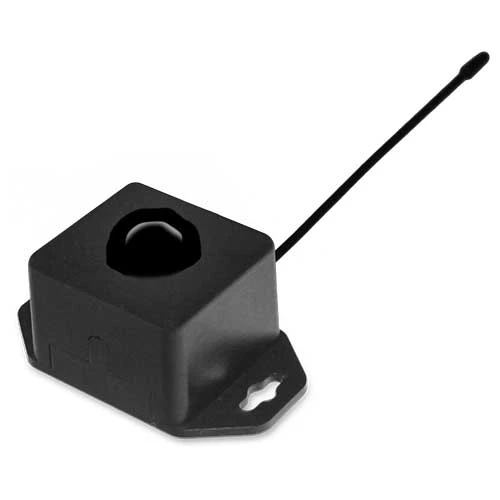

ALTA Wireless Infrared Motion Sensor – Coin Cell Powered, 900MHZ

Wirelessly monitor motion by people or animals. Know when an area is accessed or a room is entered. This infrared sensor helps you augment facility security or better understand building traffic and usage.

Monnit MNS2-9-W1-MS-IR Features

1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)

Infrared Motion Sensing Element Specifications

Current Consumption: Type: 170 µA Max: 300 µAWake-up Time: 30 Seconds

Variation Specifications

Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)Weight: 0.7 oz. (19.84 g)

ALTA Coin Cell Specifications

Battery Type: Replaceable 3.0V (CR2032) Coin Cell BatteryDimension: 2.0 in x 1.125 in x 0.875 inMax Operating Temperature: -7°C to +60°C ( 20°F to +140°F )Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )Supply Voltage: 2.0 – 3.8 VDCBattery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. **Enclosure Technology: Monnit PinchPower™ Wireless Sensor EnclosuresEnclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
