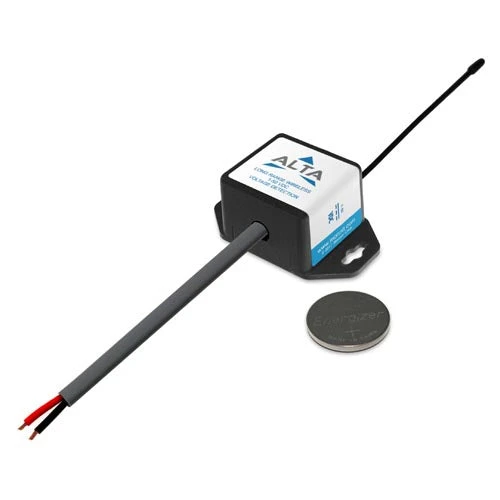

ALTA Wireless Voltage Detection – 200 VDC – Coin Cell Powered, 900MHZ

The Monnit Voltage Detector – 200 VDC detects the presence or absence of electricity. It is intended for use on battery or other DC sources, up to 200 Volts. Not intended for use with AC Voltages. It is perfect for batteries, adapters, solar equipment, vehicles or machinery, and any other electrical appliance monitoring. The sensor triggers on voltage presence to voltage Absence and vice versa. The data is displayed as “Voltage Detected” or “No Voltage”.

Monnit MNS2-9-W1-VD-200 Features

1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)

Voltage Detection Sensor Specifications

Maximum Rated Input Voltage: 200.0 VoltsMinimum Rated Input Voltage: -200.0 VoltsVoltage Detection Threshold: Present above ~2 VDC, Absent below ~1.8 VDC (Indeterminant from 1.8 to 2 VDC)Trigger: Transmits data upon state changeOpen Circuit Reading: Voltage absentResponse Time: ~2 SecondsLead Wire Length: 2 Wires, 1 ft (12 in), Red (+), Black (-), 22 AWG

Variation Specifications

Weight: 0.9 oz. (25.51 g)

ALTA Coin Cell Specifications

Battery Type: Replaceable 3.0V (CR2032) Coin Cell BatteryDimension: 2.0 in x 1.125 in x 0.875 inMax Operating Temperature: -7°C to +60°C ( 20°F to +140°F )Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )Supply Voltage: 2.0 – 3.8 VDCBattery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. **Enclosure Technology: Monnit PinchPower™ Wireless Sensor EnclosuresEnclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
