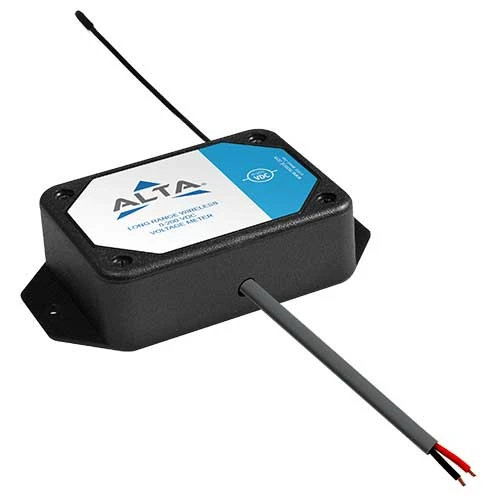

ALTA Wireless Voltage Meters – 0-200 VDC – AA Battery Powered, 900MHZ

ALTA wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 200 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a “voltage observer”. Cannot be used for AC voltage measurement.

Monnit MNS2-9-W2-VM-200 Features

1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)

Voltage Meter Specifications

Voltage Resolution: 0.01 VDCFull Scale Voltage: 0-200 VDCAbsolute Maximum Voltage: 250 VDCAccuracy: @1V or above: +/- 1% (0.5% typical) @500mV: +/- 2% typical @250mV: +/- 4% typical @150mV: +/- 7% typicalMinimum Voltage Detected: 150mVResolution: ~5 mV

Variation Specifications

Weight: 3.9 oz. (111 g.)

ALTA AA Specifications

Battery Type: 2 Replaceable AA 1.5 V BatteriesDimension: 4.375 in x 2.470 in x 1.12 inSupply Voltage: 2.0 – 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)Battery Life: At 1 hour heartbeat setting, AA batteries will last up to 10 years.**Max Operating Temperature Using AA Alkaline: -18°C to 55°C (0°F to 130°F)Max Operating Temperature Using AA Lithium: -40°C to 60°C (-40°F to 140°F)Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
