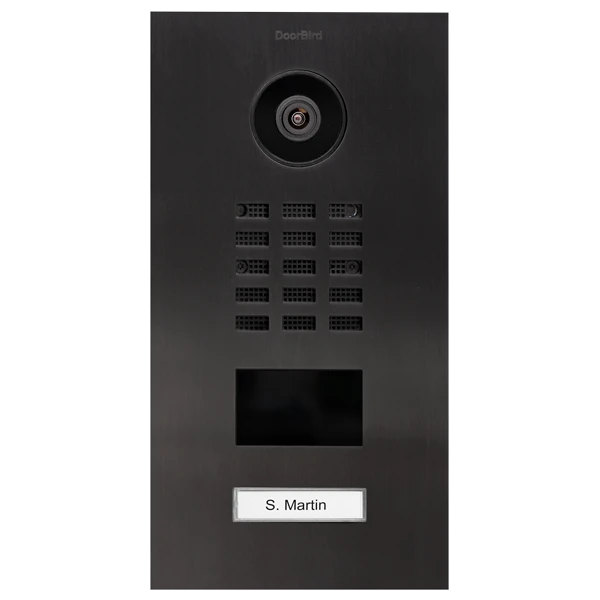

DoorBird Flush Mount IP Video Door Station, 1 Call Button, Brushed Titanium

The Doorbird D2101V-BRTI video entryphone allows users to see and speak to anyone who rings the doorbell, at any time and at any distance thanks to the built-in IP camera, directly to their smartphone or tablet. Family members can use the built-in RFID as a door key.

DoorBird Flush Mount D2101V-BRTI  IP Video Door Station Features:

• Open API
• Video and audio call
• Smart Transmission Mode (STM)
• Smart Home & NVR compatible
• Automatic door buzzer
• Free visitor history
• Individual action schedules, e.g.:
• Geofencing
• Night vision
• HDTV Video
• Light sensor
• Microphone
• Noise reduction and echo cancellation (AEC, ANR)
• RFID reader
• Motion sensor with 4D technology
• Call button
• Easy connection to the network
• Two freely configurable bi-stable switching relays

DoorBird Flush Mount D2101V-BRTI  IP Video Door Station Specifications:

General

• Front panel: 3 mm (0.12 in) Available in over 50 RAL colors and surfaces including stainless steel V2A / V4A
• Mounting Type: Flush- or surface-mounted, mounting housing sold separately
• Power supply:15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
• Call button: Illuminated

• Weight: 767g
• Weather-proof: Yes, IP65
• Approvals: IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 624711
• Dimensions: 253 x 131 x 48,75 mm (H x W x D) 9.96 x 5.16 x 1.92 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)

Requirements

• Required system:
  • Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
  • Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
  • Network: Ethernet Network, with DHCP
• Recommended mounting height: The camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.

 Video

• Camera: HDTV 720p, dynamic (VGA – HDTV)
• Lens: High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
• Night vision: Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)

 Audio

• Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
• Audio streaming: Two-way, full duplex

 Motion sensor

• Type: Active
• Detection angle: 54° (H), 70° (V)
• Range: 1 – 10 m (3.3 – 32.9 ft), depending on the environment, configurable in 1 m (3.3 ft) steps.
• Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• Configuration: Via the app, e.g.
  • Range (1 – 10 m / 3.3 – 32.9 ft)
  • Movement direction (coming, leaving, both)
  • Individual events (e.g. switch a relay, push notification, SIP call , HTTP(s) notification)
  • Individual schedule

RFID

• Type: Active Reader Passive Tag (ARPT) system
• Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
• Frequency: 125 KHz
• Range 0 – 3 cm, depending on the environment
• Antenna: Internal
• Compatible transponder: RFID key fobs
• Configuration: Via the app, e.g.
  • Tag (add, delete)
  • Individual events (e.g. switch a relay, SIP call , HTTP(s) notification) •
  • Individual schedules
  • RFID history available for 60 minutes in the app
  • Built-in wireless module

Special remarks: Assembly requires professional skills or a technician.
