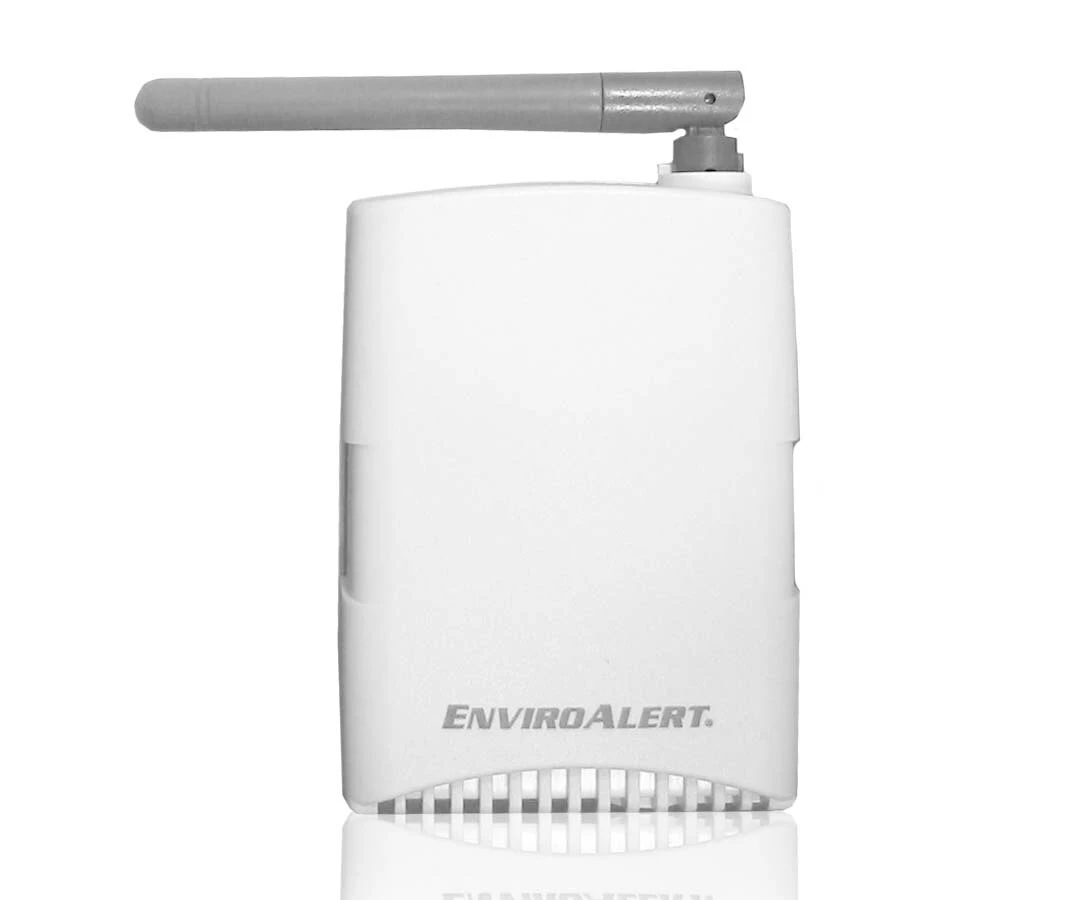

Winland Wireless Multi Function Sensor
Use this wireless transmitter to turn almost any Winland sensor into a wireless sensor for use with the Enviro Alert 800! Send a wireless signal 45′ to 100′ (results can vary) See the list under “Specifications” for all sensors which can be interpreted by the WMFS and transmitted back to the Winland EA-800.
* Requires remote sensor for operation
Winland Wireless Multi Function Sensor Specifications:
- Unit Operating Range: 32° to 122° F (0° to 50° C)
- Dimensions: 3.67 x 2.65 x 1.17″ (9.3 x 6.7 x 2.9 cm)
- Power requirements: 2 AA Batteries or 12VDC @<=100mA *batteries not included
Â
Winland Wireless Multi Function Sensor Compatibility:
- TEMPULS
- TEMPLS
- TEMPLW
- TEMPHS
- TEMPHW
- WSS
- WUCS
- PS110
- N.O/N.C devices
Â
EA-WMFS Manual
Winland Wireless Multi Function Sensor – Specifications
- Sensing Range: Remote sensor dependent – requires remote sensor for operation.
- Power Requirements: 2 – AA Alkaline Batteries or +12 VDC @
- Unit Operating Range: +32° to 122° F (0° to +50° C) Non-condensing environment.
- Battery Life: Up to 4 years
- Frequency: 2.405 GHz – 2.480 GHz, 16 channels. See owners manual for more information.
- Transmission Distance: 1,000?? (304.8 m) line-of-sight
- Weight: 0.25 lb (0.11 kg)
- Dimensions: 3.67?? x 2.65?? x 1.17?? (9.3 cm x 6.7 cm x 2.9 cm)
- Mounting: Surface mount
Accepted Probes:
Accepted Probes: | |||
| Detection | Model Number | Part Number | Range |
| Temp Ultra Low (White) | TEMP-UL-S | +32° to 299° F | -112° to +32° F |
| Temp High (Red) Stainless Steel | TEMP-H-S | M-001-0081 | +32° to 299° F |
| Temp High (Red) Waterproof | TEMP-H-W | M-001-0087 | +32° to 221° F |
| Temp Low (Blue) Stainless Steel | TEMP-L-S | M-001-0082 | -58° to +158° F |
| Temp Low (Blue) Waterproof | TEMP-L-W | M-001-0086 | -58° to +158° F |
| Water Surface Sensor (supervised) | W-S-S | M-001-0094 | |
| Water Under Carpet (supervised) | W-UC-S | M-001-0009 | |
| N.O./N.C. devices | |||
Winland Wireless Multi Function Sensor – Included
- 1 – Winland EAWMFS Wireless Multi-Function Transmitter
Winland Wireless Multi Function Sensor – Support and Downloads
- Wireless Wireless Multi-Function Transmitter
